Revolution Mobile Hanging Acrylic Shield – REV-MHAS

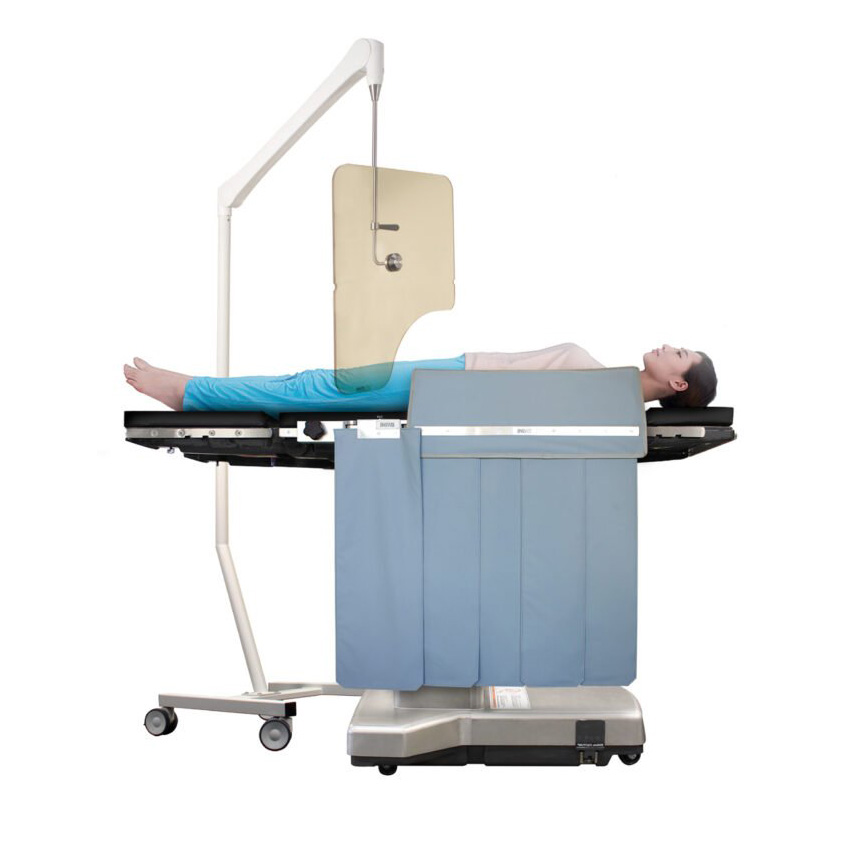

Fully adjustable mobile shield that can be altered to user’s preference. This product provides the benefits of an overhead suspension barrier with the mobility to fit into exam rooms of any size. The acrylic barrier can be raised, lowered, and rotated 360° in both vertical and horizontal planes to fit snug against the torso of the patient.
- Mobile unit with superior stability.
- Gives user full control of shield placement.
- Pivot ball allows for 360° motion.
- Durable 0.50mm acrylic shield.
- Small footprint, does not interfere with physician’s position
at the table.
Description
| Model | Description |
| REV-MHAS | Revolution Mobile Hanging Acrylic Shield |

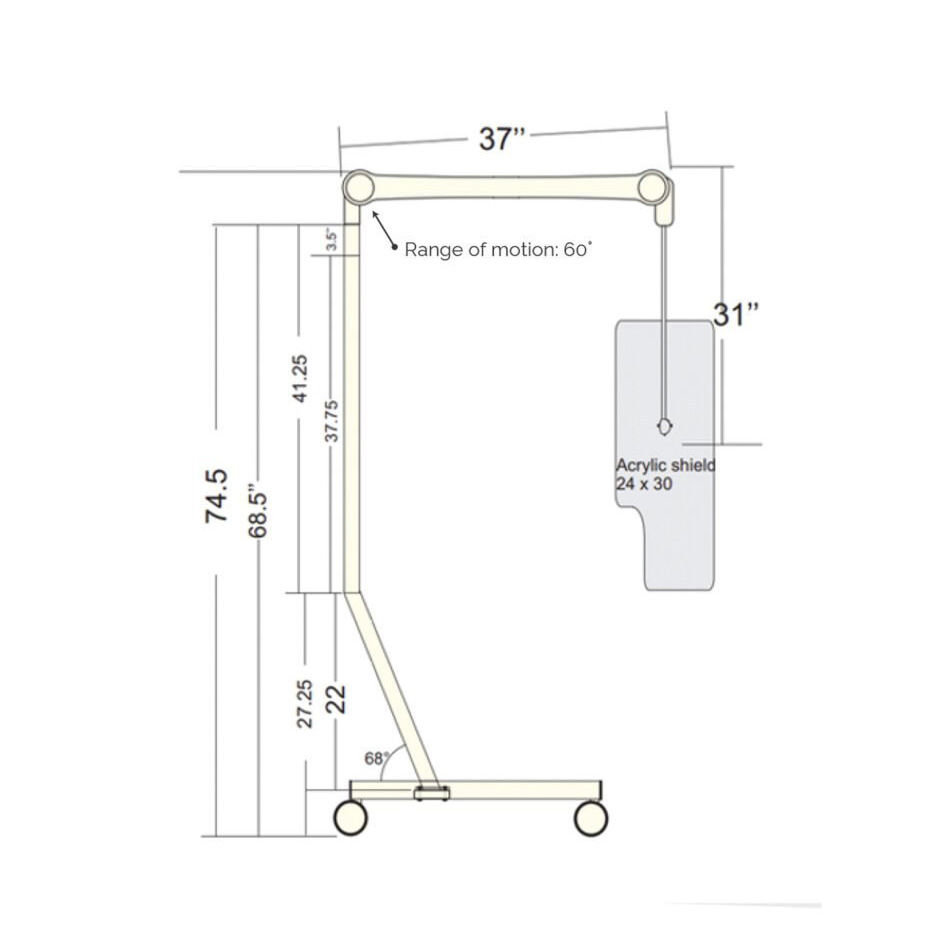

| Dimensions | 79” H x 37” W x 25” D |
| Window Size | 24” H x 30” W |
| Protection | Lead free acrylic window .50mm LE |
| Frame | Powder Coated Steel |
| Wheels | 4 swivel hospital grade casters (2 with brakes) |
| Panel | .50mm LE in White, Black, or Grey |
| Colors | Standard off-white powder coated. Other colors available. |
| Packaging | |
| Box 1 | 8” H x 44” W x 26” D Total Weight: 31 lbs. |
| Box 2 | 6” H x 65” W x 16” D 36 lbs. |
| Box 3 | 8” H x 30” W x 30” D 29 lbs.. |
